How to Improve Electric Furnace Insulation Efficiency with Ceramic Fiber Insulation Products

As industrial energy costs continue to rise, improving the thermal efficiency of electric furnaces has become a key concern for manufacturers. A well-designed insulation system can reduce heat loss, shorten heating cycles, and lower operating costs. Among all high temperature insulation materials, ceramic fiber insulation products are one of the most effective solutions for modern electric furnace applications.

Why Insulation Efficiency Matters in Electric Furnaces

Electric furnaces operate under high temperatures for long periods. If the insulation layer is not properly designed, a large amount of heat escapes through the furnace walls, roof, and door gaps. This leads to increased power consumption and unstable temperature control.

Improving insulation efficiency helps:

• Reduce electricity usage

• Maintain stable internal temperatures

• Improve heating consistency

• Extend furnace service life

This is why many industrial users are replacing traditional refractory linings with lightweight ceramic fiber insulation products.

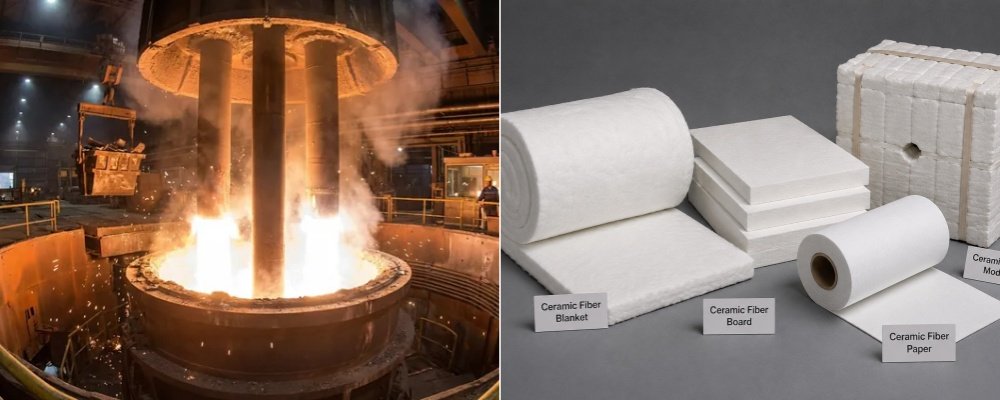

Ceramic Fiber Insulation Products Used in Electric Furnaces

A complete furnace insulation system often combines several ceramic fiber products, each serving a different purpose.

Ceramic Fiber Blanket

Ceramic fiber blanket is commonly used as the backup insulation layer. It is lightweight, flexible, and offers low thermal conductivity. It can effectively reduce heat transfer through the furnace shell.

Ceramic Fiber Module

Ceramic fiber modules are pre-compressed insulation units installed directly on the furnace shell. They are suitable for high-temperature zones and can improve sealing performance.

Ceramic Fiber Board

Ceramic fiber board is a rigid material often used in furnace doors, burner blocks, and areas requiring stronger mechanical support.

Ceramic Fiber Paper

Ceramic fiber paper is usually applied in expansion joints, gaskets, and sealing areas to reduce heat leakage.

Practical Ways to Improve Electric Furnace Insulation Efficiency

1. Upgrade to Lightweight Ceramic Fiber Lining

Traditional refractory bricks are dense and store a large amount of heat, which increases energy consumption. Replacing them with ceramic fiber insulation materials significantly reduces heat storage and improves thermal response.

2. Use a Multi-Layer Insulation Structure

A multi-layer design is one of the best ways to improve furnace efficiency. A typical structure includes:

• Inner hot face: ceramic fiber module

• Middle layer: ceramic fiber blanket

• Outer support layer: ceramic fiber board

This design minimizes heat loss while maintaining structural stability.

3. Improve Sealing Around Furnace Doors

Heat often escapes from door edges and connection joints. Using ceramic fiber paper or blanket as sealing material can effectively improve the furnace’s overall insulation performance.

4. Perform Regular Lining Maintenance

Over time, insulation materials may shrink or wear due to continuous thermal cycling. Periodic inspection and replacement of damaged sections help maintain optimal efficiency.

Benefits of Using Ceramic Fiber Insulation Products

Compared with conventional refractory materials, ceramic fiber products offer clear advantages:

• Lower thermal conductivity

• Lightweight construction

• Faster installation

• Lower furnace shell temperature

• Reduced energy consumption

These benefits make ceramic fiber the preferred choice for electric furnace insulation upgrades.

Conclusion

Improving electric furnace insulation efficiency starts with selecting the right ceramic fiber insulation products. By combining ceramic fiber blanket, ceramic fiber modules, ceramic fiber board, and ceramic fiber paper, manufacturers can achieve better thermal performance and long-term energy savings.

Mindelun Materials supplies high-quality ceramic fiber insulation products for industrial furnace applications, helping customers worldwide optimize high-temperature equipment performance.
