How to Select the Right Ceramic Fiber Module for Industrial Furnace Insulation

Introduction

Choosing the right ceramic fiber module is one of the most important decisions when designing or upgrading an industrial furnace insulation system. A properly selected module can significantly reduce energy consumption, improve temperature uniformity, and extend the service life of the industrial furnace lining.

As a professional ceramic fiber module manufacturer, Mindelun Materials supplies a complete range of high temperature insulation materials for heat treatment furnaces, petrochemical furnaces, ceramic kilns, aluminum melting furnaces, steel reheating furnaces, and other thermal processing equipment.

This guide explains how to select the most suitable ceramic fiber module for your furnace application.

What Is a Ceramic Fiber Module?

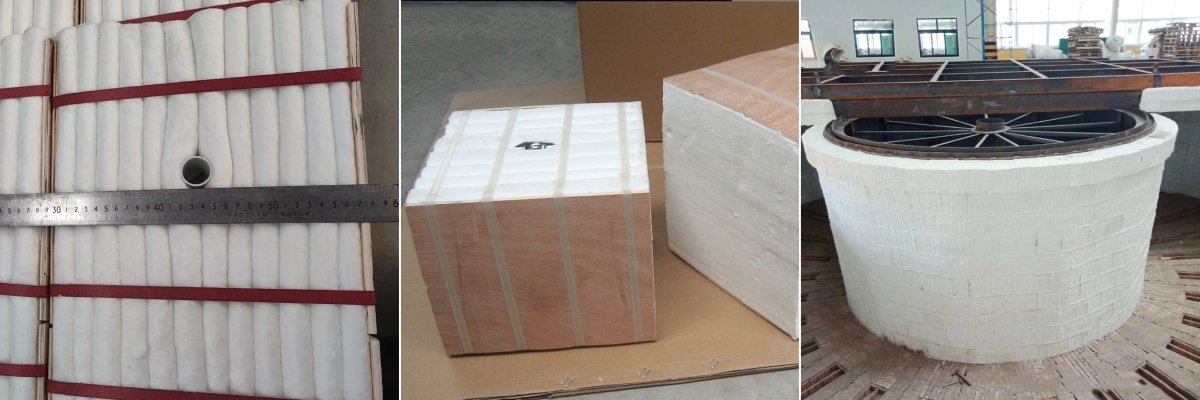

A ceramic fiber module is a pre-compressed insulation unit manufactured from folded ceramic fiber blankets and integrated anchoring systems. It is widely used in modern furnace lining insulation because of its lightweight structure, excellent thermal performance, and fast installation.

Key Advantages

✔ Low thermal conductivity

✔ Excellent thermal shock resistance

✔ Fast installation and replacement

✔ Reduced furnace heat loss

✔ Lower fuel consumption

✔ Longer furnace service life

✔ Ideal for various industrial insulation solutions

Why Ceramic Fiber Modules Are Replacing Traditional Refractory Linings

Compared with traditional refractory bricks and castables, ceramic fiber insulation provides superior energy-saving performance.

For industries focused on energy saving furnace insulation, ceramic fiber modules have become the preferred lining material.

1. Select the Module According to Furnace Temperature

The first step in selecting refractory insulation materials is determining the maximum operating temperature.

Recommended Temperature Grades

Expert Tip

Always select a module with a classification temperature higher than the actual operating temperature to maximize lining lifespan.

2. Choose the Proper Module Density

Density directly affects insulation efficiency and mechanical stability.

Common Density Options

For most industrial furnace lining projects, densities between 190 and 220 kg/m³ provide the best balance between insulation performance and cost.

3. Determine the Required Module Thickness

Module thickness has a significant impact on furnace shell temperature and overall energy consumption.

Increasing insulation thickness is one of the most effective ways to improve industrial furnace insulation performance.

4. Consider Furnace Atmosphere

Different furnace atmospheres require different high temperature insulation materials.

Oxidizing Atmosphere

Suitable Materials:

• Standard Ceramic Fiber Module

• High Purity Ceramic Fiber Module

Reducing Atmosphere

Recommended Materials:

• High Alumina Ceramic Fiber Module

• Zirconia Ceramic Fiber Module

Hydrogen Atmosphere

Recommended Materials:

• Polycrystalline Mullite Fiber Module

Corrosive Atmosphere

Additional protective layers may be required to protect the furnace lining insulation system.

5. Select the Right Anchoring System

The anchoring system affects the stability and longevity of the ceramic fiber lining.

Center Anchor Modules

Best For:

• Heat treatment furnaces

• Box furnaces

Internal Anchor Modules

Best For:

• Petrochemical furnaces

• Continuous furnaces

Edge Anchor Modules

Best For:

• High-velocity combustion zones

A professional ceramic fiber module manufacturer can recommend the most suitable anchoring design based on furnace conditions.

Recommended Ceramic Fiber Modules for Different Industrial Furnaces

How Ceramic Fiber Modules Improve Energy Efficiency

Modern energy saving furnace insulation systems can deliver significant operational benefits:

• Reduce heat loss by up to 30%

• Lower fuel consumption

• Increase heating efficiency

• Improve temperature uniformity

• Reduce furnace shell temperature

• Shorten start-up time

• Reduce carbon emissions

For manufacturers seeking cost-effective industrial insulation solutions, ceramic fiber modules offer an excellent return on investment.

Why Choose Mindelun Materials?

Mindelun Materials is a trusted ceramic fiber module manufacturer specializing in ceramic fiber insulation and refractory insulation materials for industrial applications.

Our Advantages

• 2 modern manufacturing facilities

• 7 production lines

• Annual output of 21,600 tons

• Customized module sizes and anchoring systems

• Fast delivery worldwide

• Professional furnace insulation support

• OEM and private label services

We provide complete industrial furnace insulation solutions for customers worldwide.

Frequently Asked Questions

What density ceramic fiber module is best for industrial furnaces?

For most applications, 190-220 kg/m³ modules provide the optimal balance between insulation performance and durability.

How long do ceramic fiber modules last?

Under normal operating conditions, a properly designed ceramic fiber lining can last 5-10 years or longer.

Are ceramic fiber modules more energy efficient than refractory bricks?

Yes. Ceramic fiber modules have lower thermal conductivity and heat storage, making them a superior energy saving furnace insulation solution.

Which ceramic fiber module is suitable for temperatures above 1500°C?

Zirconia ceramic fiber modules or polycrystalline mullite fiber modules are recommended for high-temperature applications.

Conclusion

Selecting the right ceramic fiber module is essential for achieving reliable industrial furnace insulation, reducing operating costs, and extending furnace life. By considering operating temperature, density, thickness, atmosphere, and anchoring systems, manufacturers can build highly efficient industrial furnace lining systems.

As an experienced ceramic fiber module manufacturer, Mindelun Materials offers customized industrial insulation solutions and premium high temperature insulation materials to help customers improve furnace performance and energy efficiency.
