How to Choose the Right Rock Wool Board Thickness for Home Insulation

As energy-efficient construction becomes increasingly important, choosing the correct rock wool board for home insulation is essential for maximizing thermal performance, fire protection, and indoor comfort. Whether you are insulating exterior walls, roofs, floors, or interior partitions, selecting the appropriate rock wool insulation board thickness can significantly improve building efficiency and reduce long-term energy costs.

Why Thickness Matters in Rock Wool Insulation

The thermal performance of a thermal insulation board is directly related to its thickness. A thicker rock wool board generally provides better resistance to heat transfer, helping maintain stable indoor temperatures throughout the year.

Benefits of selecting the proper thickness include:

• Improved energy efficiency

• Lower heating and cooling costs

• Enhanced indoor comfort

• Better sound insulation

• Increased fire safety

• Longer building service life

Recommended Rock Wool Board Thickness for Different Applications

Choosing Rock Wool Board Thickness by Climate

Warm Climate Regions

In areas with mild winters and hot summers, 50 mm rock wool insulation boards are often sufficient for exterior walls. They help reduce solar heat gain and improve indoor comfort while maintaining cost efficiency.

Moderate Climate Regions

For regions experiencing both hot summers and cold winters, 75 mm to 100 mm rock wool boards are commonly used in wall insulation systems to achieve better thermal performance.

Cold Climate Regions

Buildings located in colder climates should consider 100 mm to 150 mm high-density rock wool boards for walls and roofs. The additional thickness minimizes heat loss and improves overall energy efficiency.

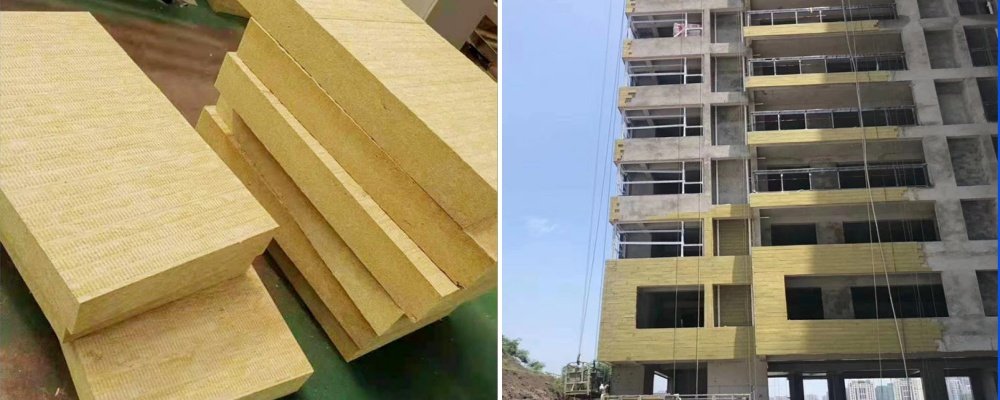

Exterior Wall Insulation: The Most Common Application

Exterior wall insulation is one of the largest markets for rock wool board insulation. Typical thickness options include:

• 50 mm rock wool board

• 75 mm rock wool board

• 100 mm rock wool board

For high-rise residential buildings and energy-saving projects, high-density rock wool boards are often preferred because they provide excellent thermal insulation, dimensional stability, and fire resistance.

Roof Insulation Requires Greater Thickness

Heat loss through the roof can account for a significant portion of a home's energy consumption. Therefore, roof insulation boards are usually thicker than wall insulation.

Recommended thickness:

• 80 mm for mild climates

• 100 mm for standard residential projects

• 120-150 mm for cold regions and passive house designs

Using a quality fireproof insulation board in roofing systems also enhances building safety.

Acoustic Performance for Interior Walls

When the primary goal is noise reduction, rock wool acoustic insulation boards are an excellent choice.

A 50 mm acoustic insulation board can effectively reduce sound transmission between rooms, making it ideal for:

• Bedrooms

• Home offices

• Apartments

• Hotels

• Educational buildings

Density and Thickness: A Perfect Combination

When selecting a rock wool board manufacturer, it is important to consider both thickness and density.

Typical Density Options

• 60-80 kg/m³: Interior walls and ceilings

• 80-120 kg/m³: Residential exterior wall insulation

• 120-150 kg/m³: High-performance facade systems

• 150 kg/m³+: Areas requiring higher compressive strength

Higher density boards generally offer improved mechanical strength, sound absorption, and long-term durability.

How to Select the Best Rock Wool Board for Your Project

Before purchasing rock wool insulation boards, consider:

✔ Local building energy regulations

✔ Climate conditions

✔ Wall and roof construction

✔ Fire-resistance requirements

✔ Acoustic insulation needs

✔ Project budget

✔ Installation space limitations

Working with an experienced rock wool board manufacturer can help ensure the correct specification for your project.

Conclusion

Choosing the proper rock wool board for home insulation is critical for achieving long-term energy savings and building performance.

• 25-50 mm rock wool boards are ideal for interior walls and soundproofing.

• 50-100 mm rock wool insulation boards are commonly used for exterior wall insulation.

• 80-150 mm roof insulation boards provide excellent thermal efficiency for attic and roof applications.

By selecting the right combination of thickness and density, homeowners and contractors can benefit from superior thermal insulation, enhanced fire safety, and outstanding acoustic performance.
