How to Choose the Right Industrial Insulation Materials: Ceramic Fiber Blanket, Soluble Fiber Blanket, and High Silica Fiber Blanket

Introduction

Selecting the right industrial insulation materials is essential for improving energy efficiency, reducing operating costs, enhancing equipment performance, and ensuring workplace safety. Different industrial applications require different insulation solutions depending on operating temperature, environmental regulations, thermal shock resistance, and chemical exposure.

Among the most widely used high-temperature insulation materials, ceramic fiber blanket, soluble fiber blanket, and high silica fiber blanket are popular choices across industries such as steel manufacturing, petrochemical plants, power generation, cement production, glass furnaces, and heat treatment facilities.

This guide explains how to choose the most suitable insulation material for your industrial application.

Why Industrial Insulation Material Selection Matters

Proper insulation can provide:

• Reduced energy consumption

• Lower heat loss

• Improved equipment efficiency

• Enhanced worker safety

• Extended equipment lifespan

• Reduced maintenance costs

• Compliance with environmental regulations

Choosing an unsuitable insulation material may result in excessive heat loss, premature failure, and higher operational expenses.

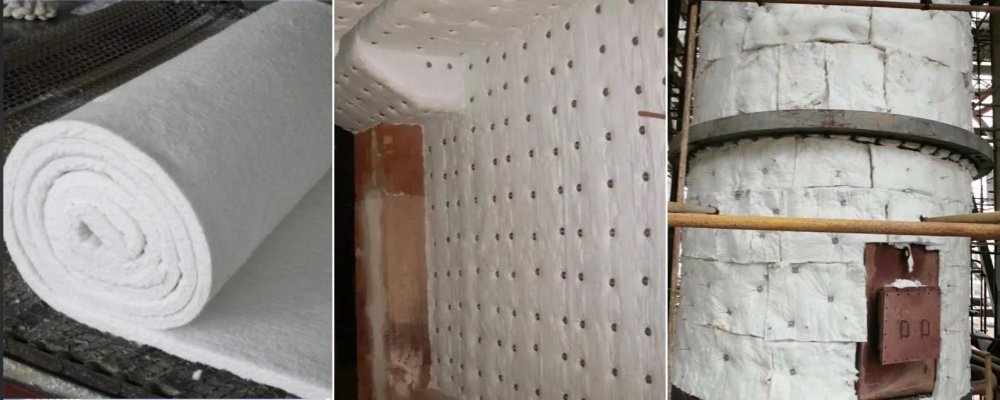

1. Ceramic Fiber Blanket for Ultra-High Temperature Applications

What is Ceramic Fiber Blanket?

Ceramic fiber blanket is a lightweight refractory insulation material manufactured from alumina-silica fibers. It offers excellent thermal insulation, low thermal conductivity, and outstanding thermal shock resistance.

Key Features

• Operating temperatures up to 1260°C, 1430°C, and 1600°C

• Low thermal conductivity

• Excellent thermal shock resistance

• Lightweight structure

• Easy installation and maintenance

• High tensile strength

Typical Applications

• Industrial furnace insulation

• Steel reheating furnaces

• Petrochemical heaters

• Cement kilns

• Heat treatment furnaces

• Boiler insulation systems

• Expansion joints

• High-temperature pipelines

When to Choose Ceramic Fiber Blanket

Choose ceramic fiber insulation blanket when:

• Operating temperatures exceed 1000°C

• Maximum thermal efficiency is required

• Weight reduction is important

• Frequent thermal cycling occurs

• Fast installation is desired

Keywords: ceramic fiber blanket, ceramic fiber insulation, refractory insulation blanket, high temperature insulation materials.

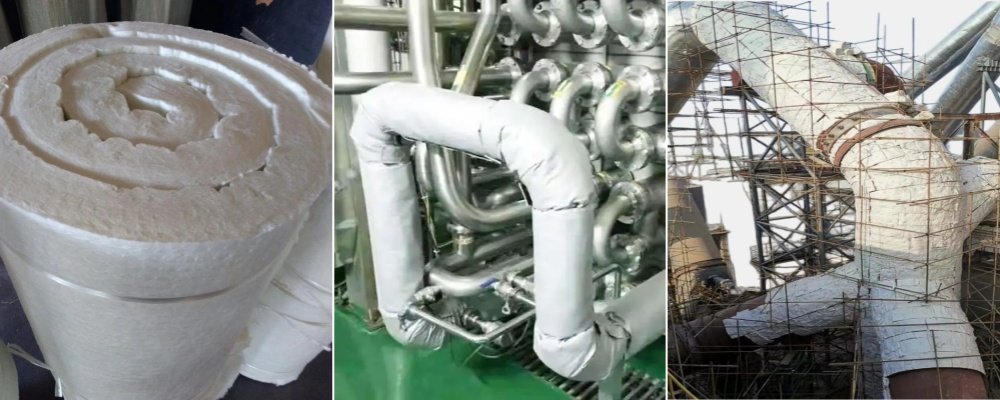

2. Soluble Fiber Blanket for Environmentally Friendly Insulation

What is Soluble Fiber Blanket?

Soluble fiber blanket, also known as AES fiber blanket or bio-soluble fiber blanket, is a low-biopersistence insulation material designed as an environmentally friendly alternative to traditional ceramic fibers.

The fibers dissolve more easily in body fluids, making them suitable for applications with strict occupational health and safety requirements.

Key Features

• Continuous operating temperature up to 1100°C

• Excellent thermal insulation performance

• Low bio-persistence

• Lightweight and flexible

• Easy handling and installation

• Environmentally friendly solution

Typical Applications

• Industrial boilers

• Power plants

• Heat treatment equipment

• Petrochemical facilities

• Pipe insulation systems

• Furnace backup insulation

• Building fire protection systems

When to Choose Soluble Fiber Blanket

Select soluble fiber blanket when:

• Working temperatures are below 1100°C

• Worker safety is a priority

• Environmental regulations are strict

• Sustainable insulation solutions are required

Keywords: soluble fiber blanket, bio soluble fiber blanket, AES fiber blanket, eco-friendly insulation materials.

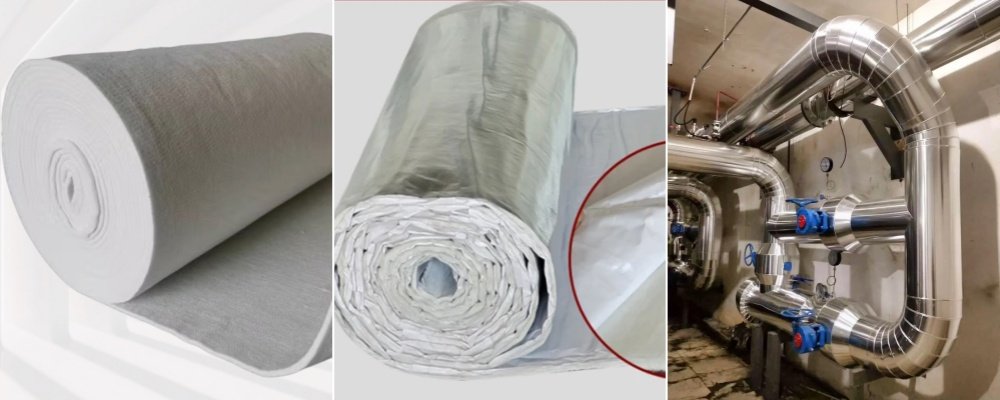

3. High Silica Fiber Blanket for Extreme Thermal Shock Resistance

What is High Silica Fiber Blanket?

High silica fiber blanket is manufactured from fibers containing more than 96% SiO₂. It provides excellent resistance to high temperatures, molten metal splash, and thermal shock.

Key Features

• Continuous temperature resistance up to 1000°C

• Short-term exposure up to 1200°C

• Excellent thermal shock resistance

• Outstanding chemical stability

• Low thermal shrinkage

• Non-combustible

Typical Applications

• Foundries

• Steel mills

• Aluminum processing plants

• Welding protection blankets

• Molten metal splash protection

• Fire-resistant curtains

• Aerospace thermal protection systems

When to Choose High Silica Fiber Blanket

Choose high silica insulation blanket when:

• Exposure to molten metal is possible

• Extreme thermal shock occurs

• Fire protection is required

• High chemical stability is needed

Keywords: high silica fiber blanket, silica insulation blanket, welding blanket, fire resistant insulation materials.

Comparison of Industrial Insulation Materials

How to Select the Best Industrial Insulation Material

When choosing industrial insulation solutions, consider:

Operating Temperature

• Below 1000°C → High Silica Fiber Blanket or Soluble Fiber Blanket

• Up to 1100°C → Soluble Fiber Blanket

• Above 1100°C → Ceramic Fiber Blanket

Workplace Safety Requirements

For projects emphasizing occupational health and environmental compliance, bio-soluble fiber blanket is often preferred.

Thermal Shock Conditions

Applications involving rapid heating and cooling benefit from ceramic fiber blanket and high silica fiber blanket.

Exposure to Molten Metal

For foundries and metal processing plants, high silica fiber blanket offers superior protection.

Energy Efficiency Goals

For maximum heat retention and energy savings, ceramic fiber blanket insulation remains one of the most efficient solutions.

Conclusion

Choosing the right industrial insulation material depends on temperature requirements, environmental regulations, thermal shock conditions, and operational safety needs.

• Ceramic Fiber Blanket: Best for ultra-high temperature furnace insulation and industrial thermal efficiency.

• Soluble Fiber Blanket: Ideal for environmentally friendly and worker-safe insulation applications.

• High Silica Fiber Blanket: Perfect for molten metal protection, welding safety, and extreme thermal shock environments.

By selecting the appropriate insulation solution, industries can reduce energy consumption, improve process efficiency, and extend equipment service life while maintaining safe operating conditions.
